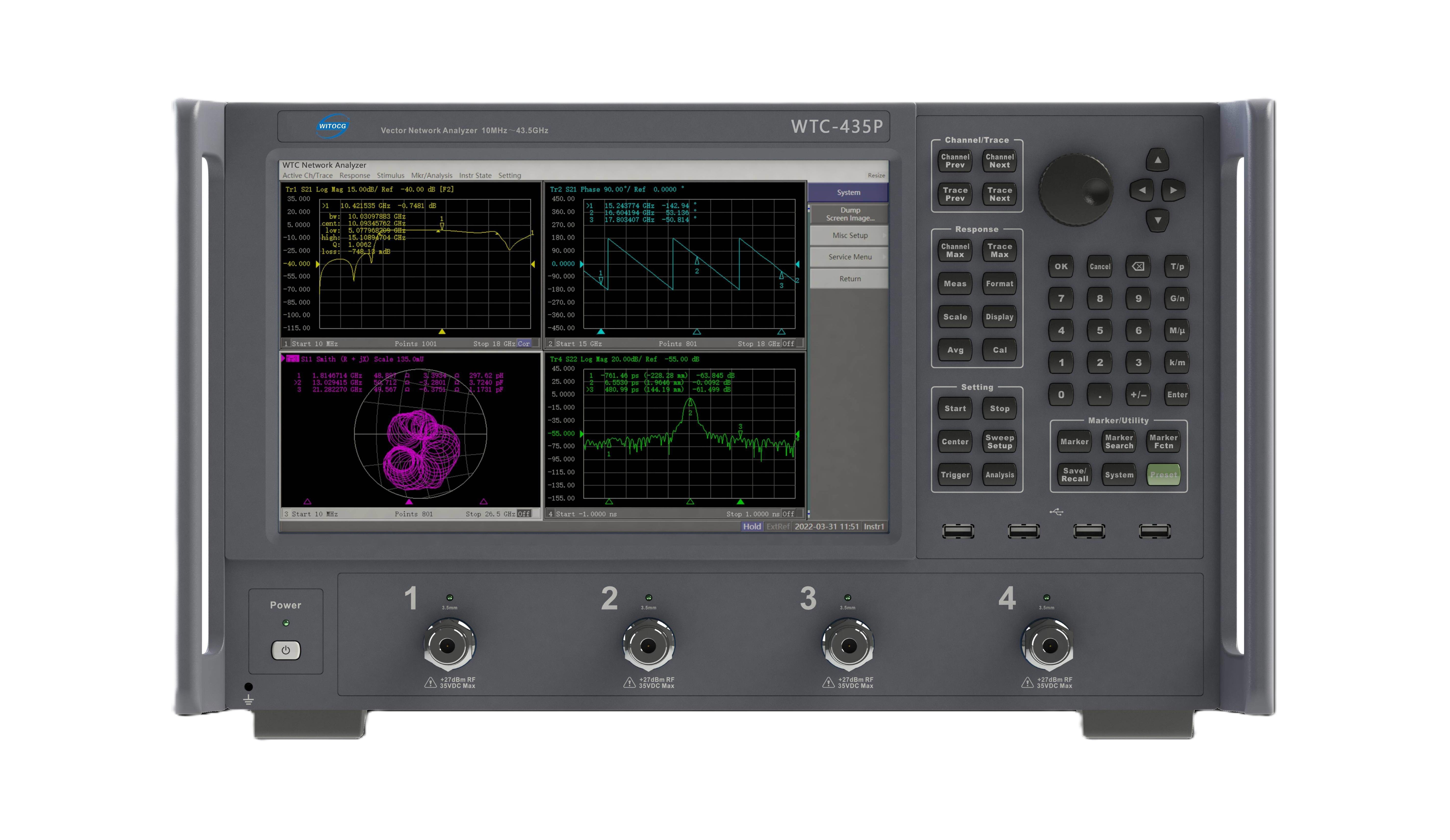

WTC-435(100KHZ-43.5GHZ)

苏州伟通成电子科技为聚焦射频测试的技术驱动型高新技术企业，依托近 20 年技术积累自主研发 WTC 系列矢量网络分析仪，是响应国家国产化替代战略的核心电子测量设备，核心定位为技术同源国际、制造扎根国内，性能对标美国是德仪器，且通过华为等头部企业全流程应用验证。

该系列产品面向科研院所、高校、生产企业的研发与生产线，提供 8.5GHz-67GHz 全频段高性能、高精度射频微波测试解决方案，可广泛应用于科研教育、通信、雷达与航空航天、5G&IoT、汽车电子、IC 设计验证等多领域，能贯穿器件与系统的设计、仿真、生产、测试全流程，有效打破高端测试设备进口依赖，助力产业链自主可控升级。

Suzhou Weitongcheng Electronic Technology Co., Ltd. is a technology-driven high-tech enterprise focusing on RF testing. Relying on nearly 20 years of technical accumulation, it independently developed the WTC series vector network analyzers, which are core electronic measurement devices responding to the national localization replacement strategy with the core positioning of adopting technologies on par with international standards and rooting manufacturing in the domestic market. Its performance is benchmarked against Keysight Technologies of the United States and has passed the full-process application verification of leading enterprises such as Huawei.

Targeting the R&D and production lines of research institutes, universities and manufacturing enterprises, this series of products provides high-performance and high-precision RF and microwave testing solutions covering the full frequency band of 8.5GHz-67GHz, and can be widely used in scientific research and education, communications, radar and aerospace, 5G&IoT, automotive electronics, IC design verification and other fields. It runs through the entire process of design, simulation, production and testing of devices and systems, effectively breaks the import dependence on high-end test equipment and facilitates the independent and controllable upgrading of the industrial chain.

核心七大优势 | Core Seven Advantages

1.  性能对标国际：关键性能指标与美国是德仪器深度对标，技术同源且做国产优化；

Key performance indicators are closely benchmarked against U.S. Keysight Technologies with homologous technology and domestic optimization.

2.  覆盖核心需求：可满足高频段测量、高动态范围分析等射频测试核心需求；

Covers core RF testing needs such as high-frequency measurement and high dynamic range analysis.

3.  精度国际先进：测量精度、稳定性达到国际同类产品先进水平；

Measurement accuracy and stability reach the advanced level of international counterparts.

4.  纯国产制造：国内完成全流程组装调试与品质管控，为纯正国产品牌；

Fully assembled, debugged and quality-controlled in China, a genuine national brand.

5.  本地化售后：提供快速响应的本地化技术支持与售后保障服务；

Provide responsive local technical support and reliable after-sales service.

6.  解决进口痛点：有效解决进口测试设备服务响应滞后的行业问题；

Effectively solve the industry problem of slow service response of imported test equipment.

7. 降低成本：减少中间环节成本，具备高性价比优势；

Reduce the costs of intermediate links with the advantage of high cost performance.

附加核心优势 | Additional Core Advantages

1.  定制化能力强：拥有强大的二次开发和技术定制能力，可快速提供个性化软硬件解决方案；

It has strong secondary development and technical customization capabilities to rapidly provide personalized software and hardware solutions.

2.  端口配置灵活：提供 2 端口 / 4 端口可选配置，4 端口可实现复杂多端口器件、差分器件的一次性完整测量，提升测试效率与数据准确性；

Flexible port configurations with 2-port/4-port options are available. The 4-port version enables one-time complete measurement of complex multi-port devices and differential devices, improving test efficiency and data accuracy.

3.  国产化信创适配：关键模块国产替代率超 60%，支持国产操作系统，符合信创与供应链安全要求；

The localization rate of key modules exceeds 60%, supporting domestic operating systems and meeting the requirements of independent innovation and supply chain security.

4.  软件自主可控：自主研发误差修正算法，软件支持二次开发与系统集成，区别于进口产品的封闭系统；

Independently developed error correction algorithms with software supporting secondary development and system integration, different from the closed systems of imported products.

通用核心性能 | General Core Performance

1.  频率覆盖：提供 8.5GHz/26.5GHz/43.5GHz/67GHz 四种标准频率配置，覆盖 10MHz~67GHz 全频段；

Frequency coverage: Four standard frequency configurations of 8.5GHz/26.5GHz/43.5GHz/67GHz are available, covering the full frequency band of 10MHz~67GHz.

2.  输出功率：典型值可达 + 13dBm，为有源器件测试提供充足驱动能力；

Output power: The typical maximum value can reach +13dBm, providing sufficient drive capability for active device testing.

3.  迹线噪声：低至 0.004dBrms，保证测量结果的平滑性与重复性；

Trace noise: As low as 0.004dBrms to ensure the smoothness and repeatability of measurement results.

4.  动态范围：典型值可达 123dB，可精确测量宽功率扫描范围内的微弱信号；

Dynamic range: The typical value can reach 123dB, which can accurately measure weak signals in a wide power sweep range.

5.  端口配置：全系列均提供 2 端口（基础款）、4 端口（高级款）可选；

Port configuration: 2-port (basic version) and 4-port (advanced version) are available for the entire series.

6.  操作设计：台式触屏一体化设计，按键与菜单贴合行业使用习惯，操作便捷；

Operation design: Integrated desktop touch screen design with keys and menus in line with industry usage habits for easy operation.

各型号专属规格 | Model-Specific Specifications
